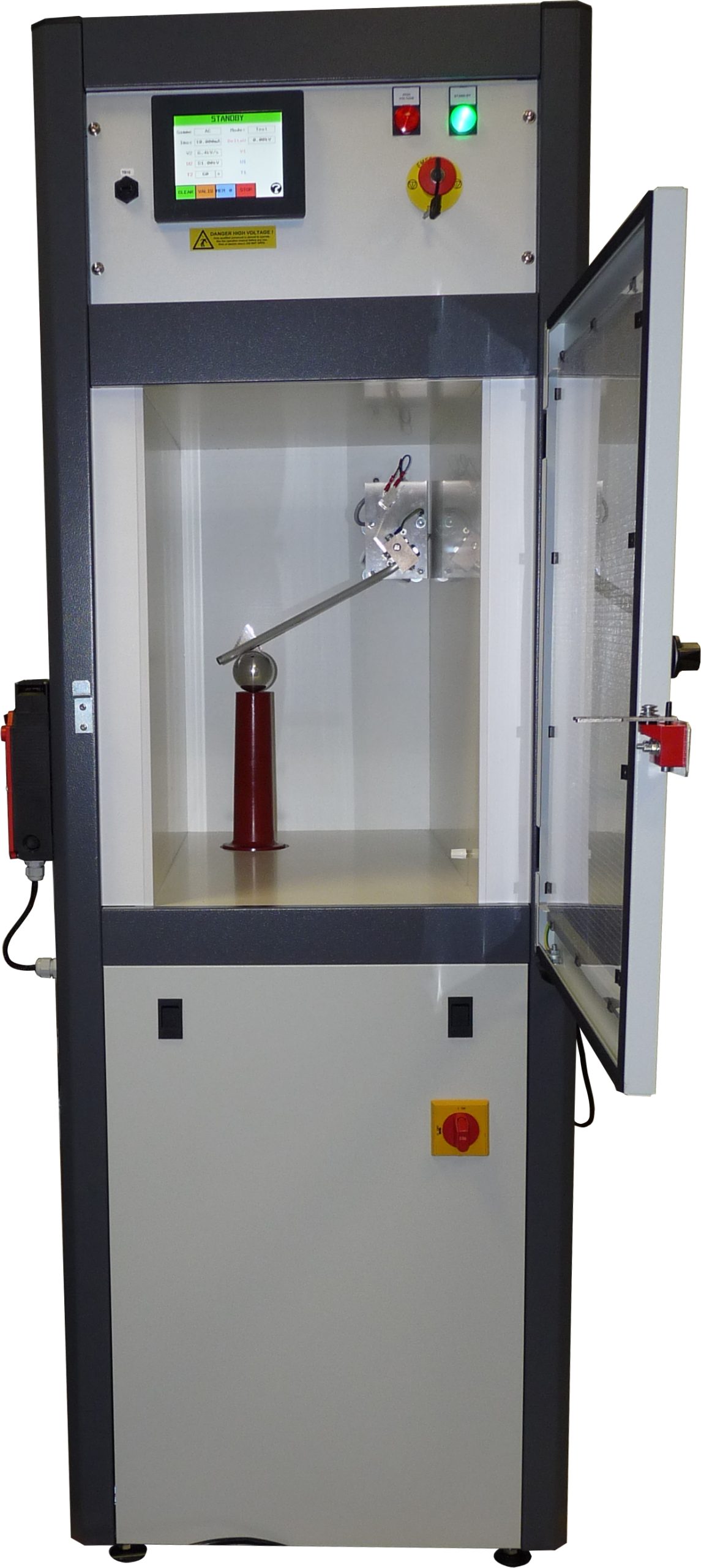

Dielectric Strength Station
Dielectric strength station AC 50kV 20mA – DC 70kV 10mA.
This standalone dielectric strength tester allows a completely safe use by qualified operators without high voltage accreditation.
The door lock and the automatic grounding relay are connected to a safety relay to bring the highest level of protection level (PLe).
Functions:
- High voltage withstand tests
- Rising to breakdown
- AC / DC / AC burning
Options:
- Isolated HV return for leakage measurements
- Bluetooth communication
- Oil bath
- Test electrodes
- Ozone extraction
Standards
CEI 60243-1
Electrical strength of insulating materials – Test methods – Part 1 : tests at power frequencies
ASTM D149 (IEC 60243-1)
Electric Strength of Insulating Materials – Test Methods
CEI 61251
Systems and electrical insulating materials – Evaluation of endurance to the AC voltage.
ANSI ASTM D 4872
Standard Test Method for Dielectric Testing of Wire and Cable Filling Compounds
Control of personal protective equipment:
safety shoes CSA Z195 EN 50321, insulating gloves IEC 60903…
