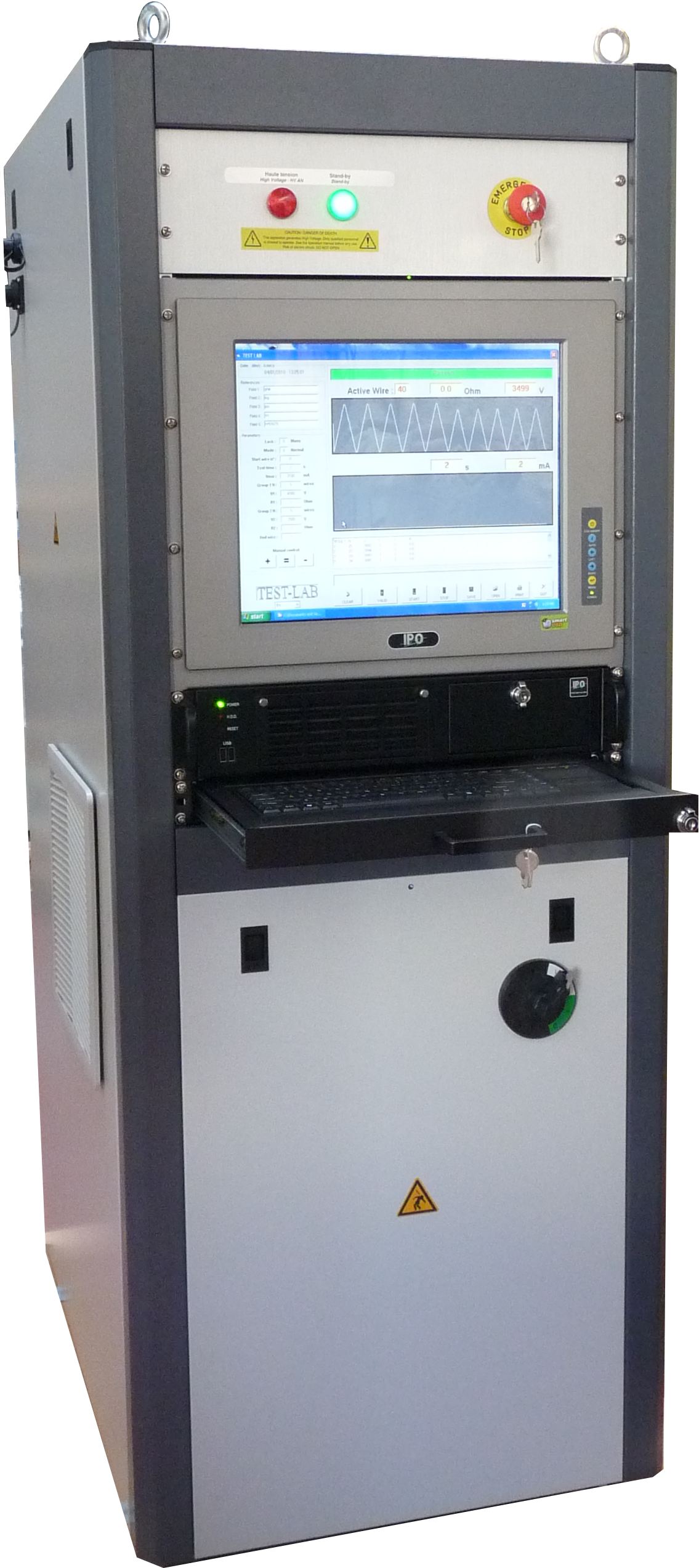

Multi-chanel HV tester
HV test 4kV 3A – 40 outputs.
This multi-chanel HV tester integrates a switching matrix to dramatically speed up the testing process and reduce operating costs.
Different tests can be chained automatically on all wires or groups.
- Continuity tests
- Resistance measurements
- Dielectric strength AC
- Isolation measurement DC
- Safety control
Test results are recorded on the factory Ethernet database.
To meet your specific requirements the specifications must detail the different steps.
We can help you define it.
Standards
EN 50395
Electrical test methods for low voltage energy cables
CEI 62230
Electric cables – Spark-test method
NF EN 3475-100
Aerospace series – Cables, electrical, aircraft use – Test methods
CEI 60502
Power cables with extruded insulation and their accessories for rated voltages from 1kV (Um = 1,2 kV) up to 30 kV (Um = 36 kV)
