Three-Phase Endurance Bench

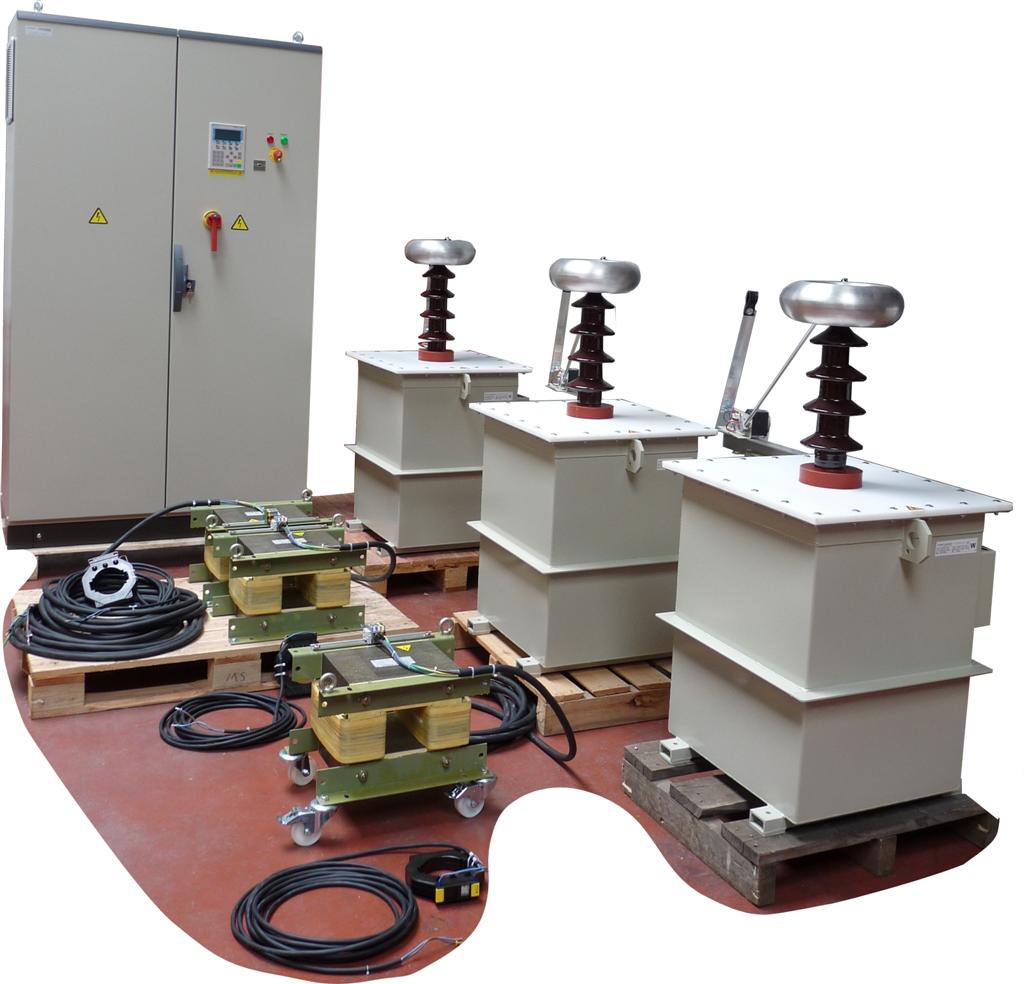

This three-phase endurance bench is used for high voltage testing with repetitive heating / cooling cycles.

It simulates a network of 730MVA – 200kV – 2.1kA.

The three loops are subjected to High Voltage so measuring the temperature directly on the conductor core is impossible. The system then uses the sleeve temperature, current measurement and cable parameters to calculate the core temperature of each conductor.

Banc d'endurance triphasé

CENELEC – HD 629.1 S2 : TEST REQUIREMENTS ON ACCESSORIES FOR USE ON POWER CABLES OF RATED VOLTAGE FROM 3,6/6(7,2) KV UP TO 20,8/36(42) KV PART 1: CABLES WITH EXTRUDED INSULATION.

CENELEC – HD 629.2 S2 : TEST REQUIREMENTS ON ACCESSORIES FOR USE ON POWER CABLES OF RATED VOLTAGE FROM 3,6/6(7,2) KV UP TO 20,8/36(42) KV PART 2: CABLES WITH IMPREGNATED PAPER INSULATION

NF EN 61442 : Test methods for power cable accessories with rated voltages of 6 kV (Um = 7,2 kV) à 36 kV (Um = 42 kV)

C33-050 : Insulated cables and their accessories for power networks – Prefabricated single-pole junctions and leads for synthetic insulation cables with a rated voltage between 6/10 (12) kV and 18/30 (36) kV

C33-051 : Insulated cables and their accessories for power networks – Disconnectable connectors with external screen and associated devices with rated voltages from 6/10 (12) kV to 18/30 36 kV

C33-052 : Insulated cables and their accessories for power networks – Unipolar ends for cables with synthetic insulation with rated voltages from 6/10 (12) kV to 18/30 (36) kV.
