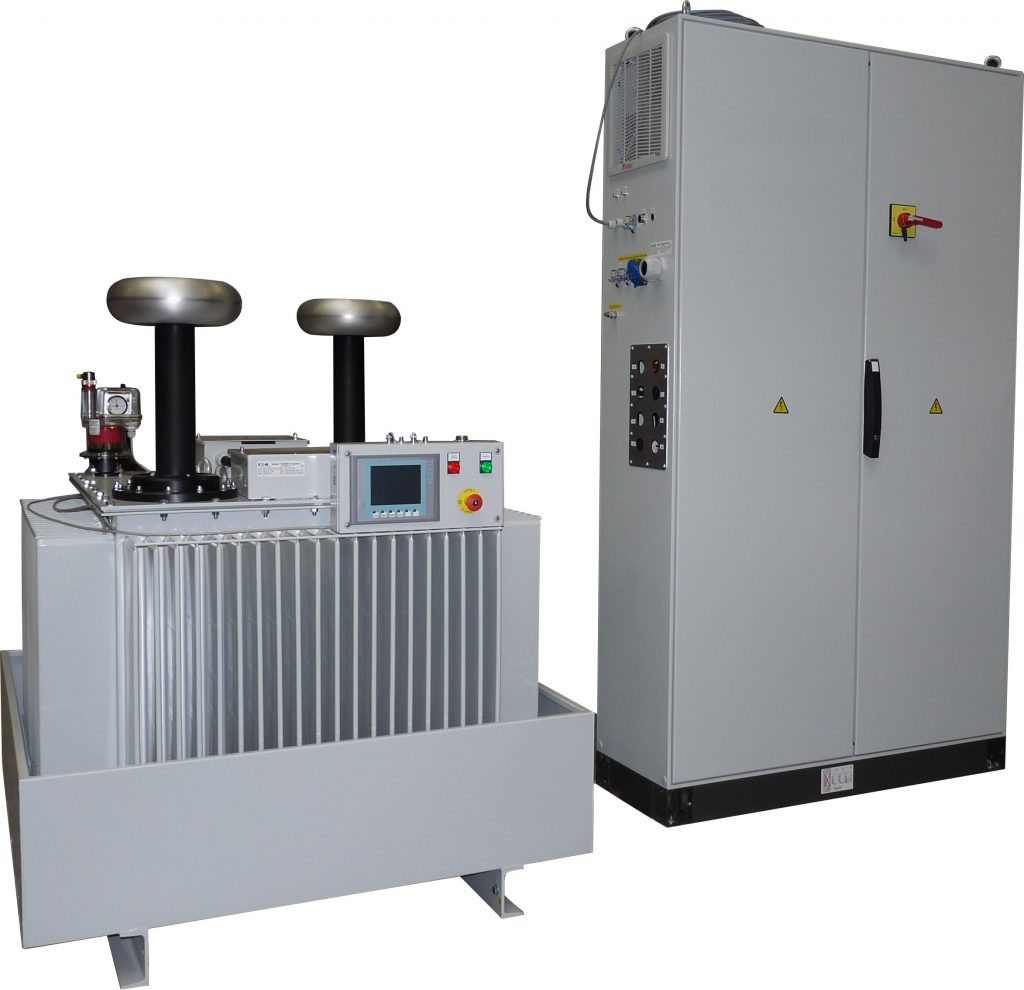

High voltage source 150kV 1A with middle point – 75kV 2A

Set in a HV test platform, this power supply allows performing tests and measurements on capacitive windings elements or the complete rotating machines.
To minimize energy consumption, size and cost of the equipment, it incorporates automatic compensation of reactive power and a series coupling / parallel.

Partial discharges free, this programmable high-voltage source can be used in production control of medium voltage cables.

The earth-isolated tank allows tangent delta measurements in the modes UST (ungrounded specimen test), GST (grounded specimen test) and GST-G (grounded specimen test with guard).

Standards :

Dielectric strength test, breakdown test and longtime withstanding test according to CEI 60060-1: High-voltage test techniques
NF EN 60034-18-32 : Rotating electrical machines – Part 18-32 : functional evaluation of insulation systems – Test procedures for form-wound windings – Evaluation by electrical endurance –
CEI/TS 60034-27: Rotating electrical machines – Part 27 : off-line partial discharge measurements on the stator winding insulation of rotating electrical machines
IEC 60034-27-3: Rotating electrical machines – Part 27-3: Dielectric dissipation factor measurement on stator winding insulation of rotating electrical machines
CEI 60270: High-voltage test techniques – Partial discharge measurements
CEI 60505: Evaluation and qualification of electrical insulation systems
NF EN 60660: Insulators – Tests on indoor post insulators of organic material for systems with nominal voltages greater than 1 kV up to but non including 300 kV
