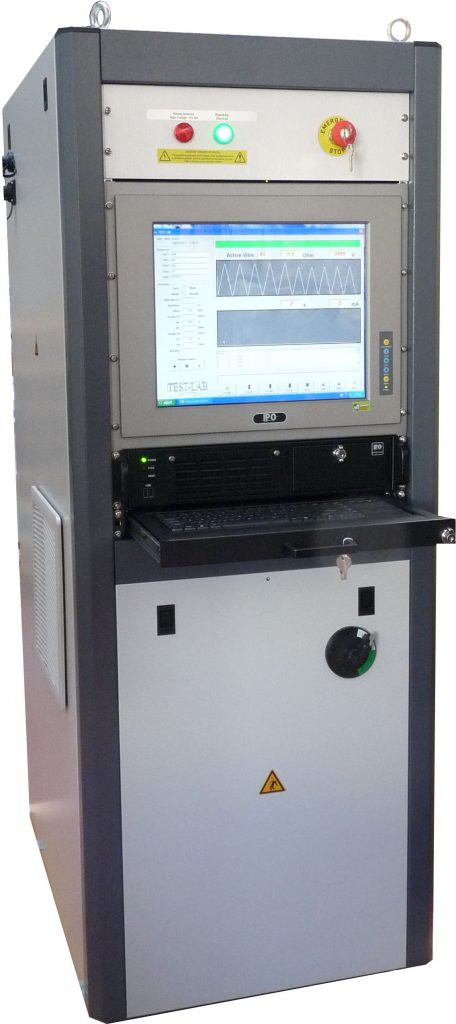

HV test 4kV 3A – 40 outputs.

This multi-chanel HV tester integrates a switching matrix to dramatically speed up the testing process and reduce operating costs.
Different tests can be chained automatically on all wires or groups.

  • Continuity tests
  • Resistance measurements
  • Dielectric strength AC
  • Isolation measurement DC
  • Safety control

Test results are recorded on the factory Ethernet database.

To meet your specific requirements the specifications must detail the different steps.

We can help you define it.

Standards :

EN 50395: Electrical test methods for low voltage energy cables
CEI 62230: Electric cables – Spark-test method
NF EN 3475-100: Aerospace series – Cables, electrical, aircraft use – Test methods
CEI 60502: Power cables with extruded insulation and their accessories for rated voltages from 1kV (Um = 1,2 kV) up to 30 kV (Um = 36 kV)
